HECO-BANCO-V03-V04-V05

Technical Sheet

Product Presentation

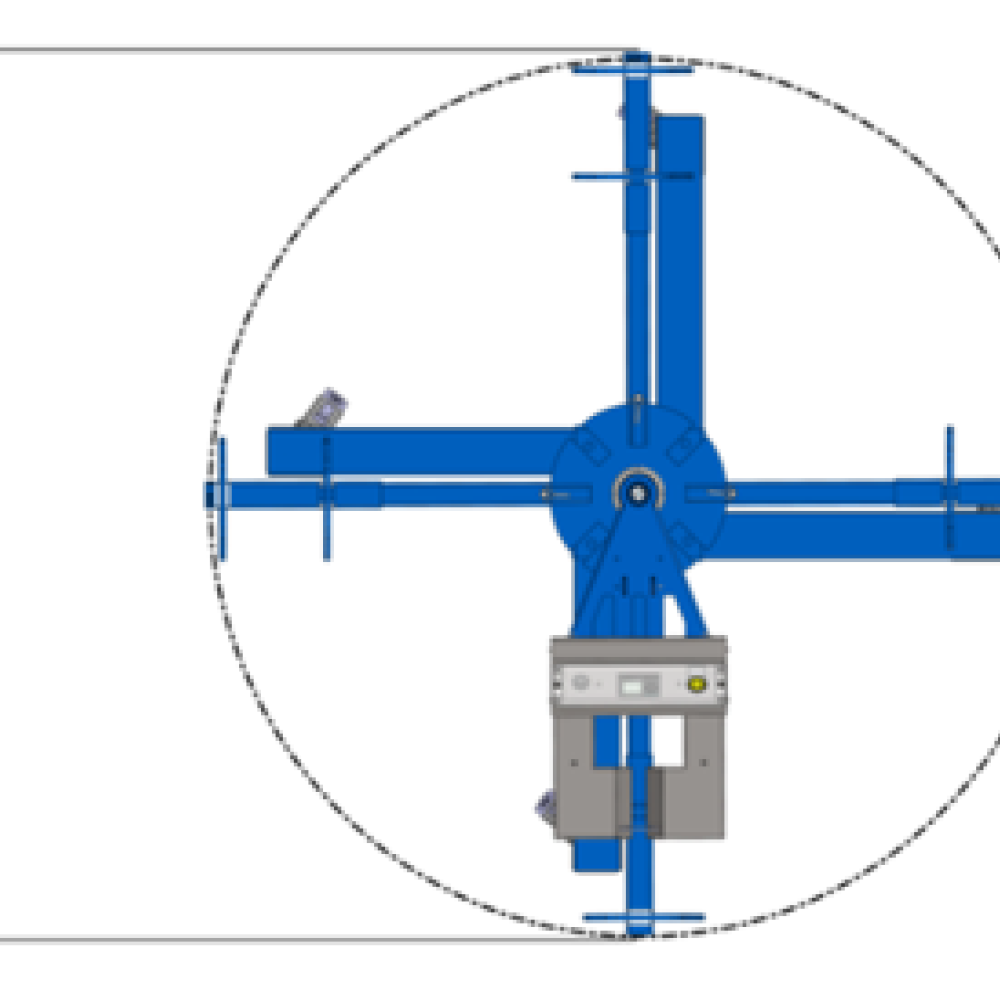

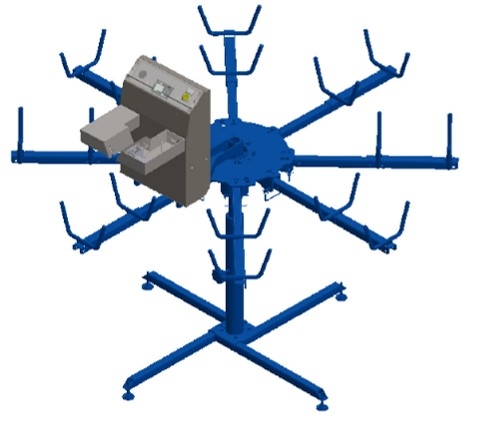

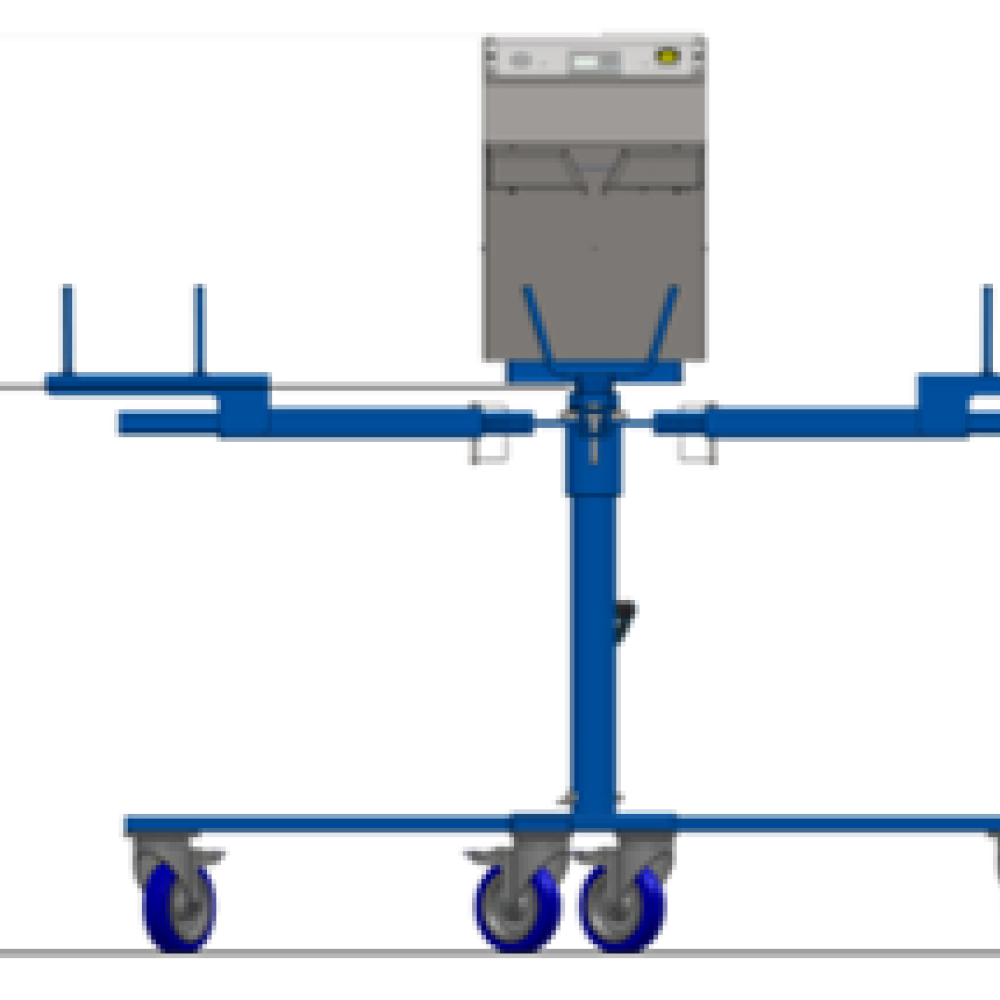

Rotating carousel with 4, 6 or 8 brackets (arms) to simplify both the counting and the creation of grafted vines bundles during the sorting and before the strapping phase. It can also simply be used to facilitate their movement from one area of the Sorting Line to another.



HECO-BANCO-V03

  • MAIN TECHNICAL FEATURES: FOLDABLE ARMS, ADJUSTABLE IN HEIGHT AND WIDTH
  • TOTAL DIMENSIONS AND WEIGHT: ADJUSTABLE HEIGHT from min. 620 to max. 750 mm; DIAMETER: 1.200 ÷ 1.500 mm; WEIGHT: 50 Kg
  • BUILDING MATERIALS: TUBULAR STRUCTURE AND COMPONENTS IN PAINTED STEEL

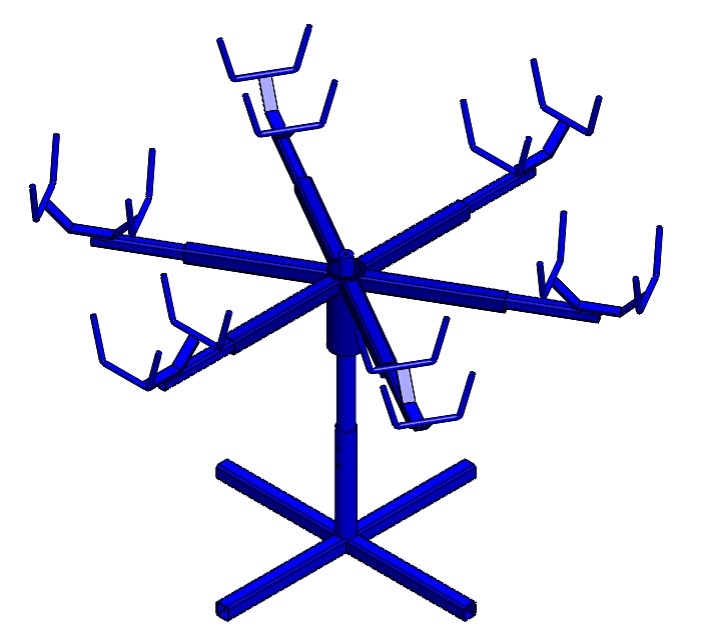

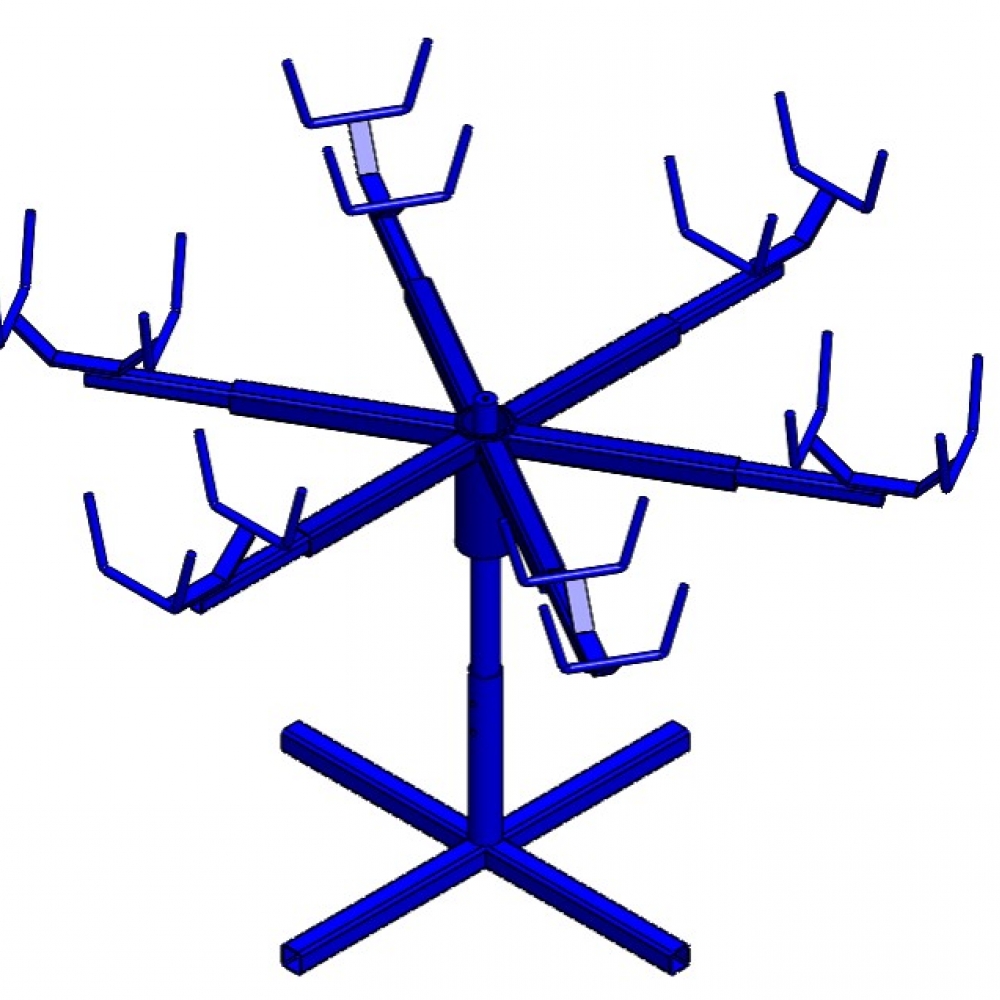

 HECO-BANCO-V04

  • MAIN TECHNICAL FEATURES: FOLDABLE ARMS, ADJUSTABLE IN HEIGHT AND WIDTH
  • TOTAL DIMENSIONS AND WEIGHT: ADJUSTABLE HEIGHT from min. 620 to max. 750 mm; DIAMETER: 1.200 ÷ 1.500 mm; WEIGHT: 60 Kg
  • BUILDING MATERIALS: TUBULAR STRUCTURE AND COMPONENTS IN PAINTED STEEL

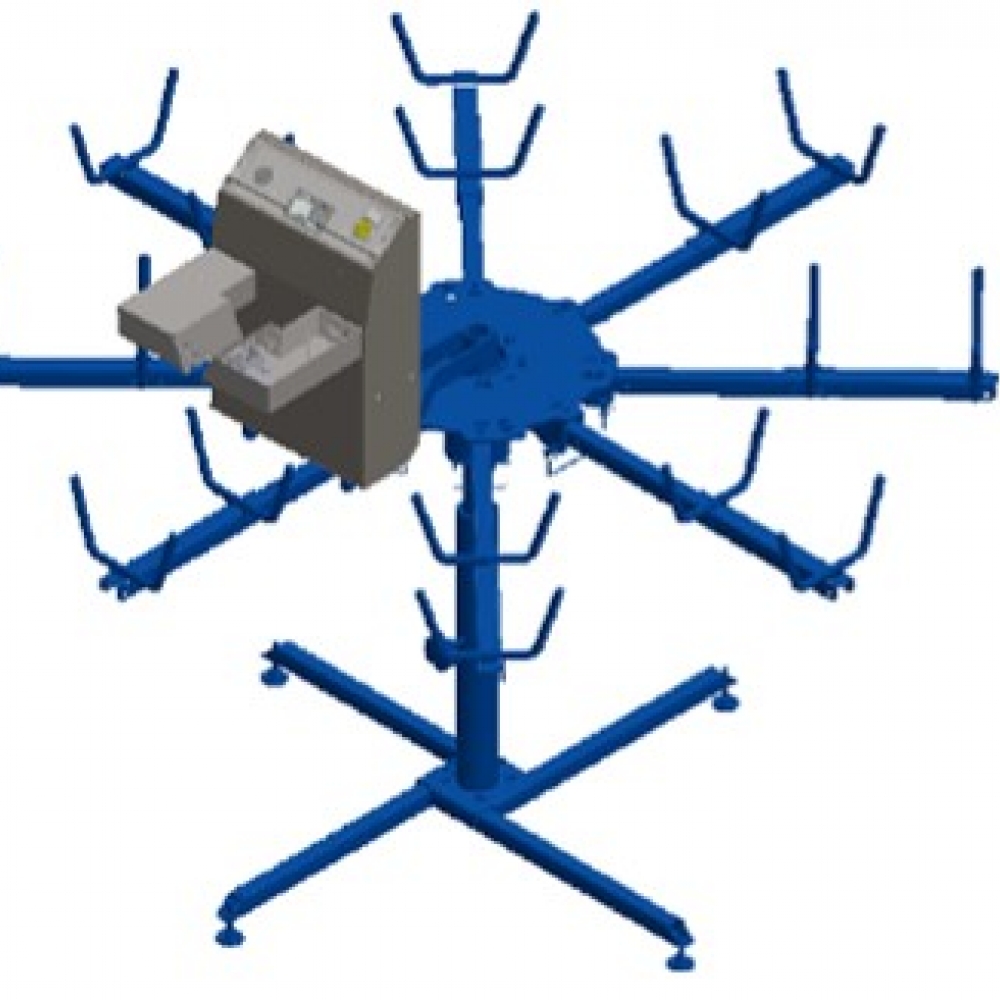

 HECO-BANCO-V05

  • MAIN TECHNICAL FEATURES: FOLDABLE ARMS, ADJUSTABLE IN HEIGHT AND WIDTH
  • TOTAL DIMENSIONS AND WEIGHT: ADJUSTABLE HEIGHT from min. 620 to max. 750 mm; DIAMETER: 1.200 ÷ 1.500 mm; WEIGHT: 70 Kg
  • BUILDING MATERIALS: TUBULAR STRUCTURE AND COMPONENTS IN PAINTED STEEL
