HECO-BANCO-V01-V02

Technical Sheet

Product Presentation

The mobile Cutting/Counting desk HECO-BANCO by Zetaecotech can be used in various ways and for different functions in manual and automatic workstations when working with vines during the sorting phase: grafted vines cleaning, buds cutting, lateral shoots cutting, roots cutting, grafted vines bundles creation and storage, etc.

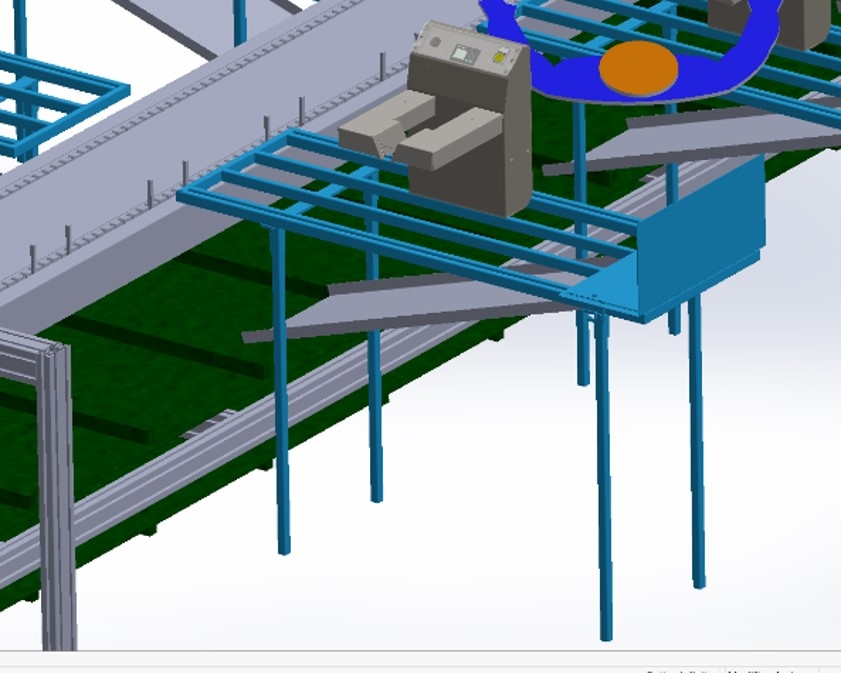

Thanks to its lightness and robustness, it can be easily positioned and adapted to create the best ergonomic workstation for the operator. The table is suitable for the installation of the HECO-COUNTER-3 standalone counting device by Zetaecotech, which allows manual data management, including the counting of 25 grafted vines per bundle, the total per variety and the daily total.

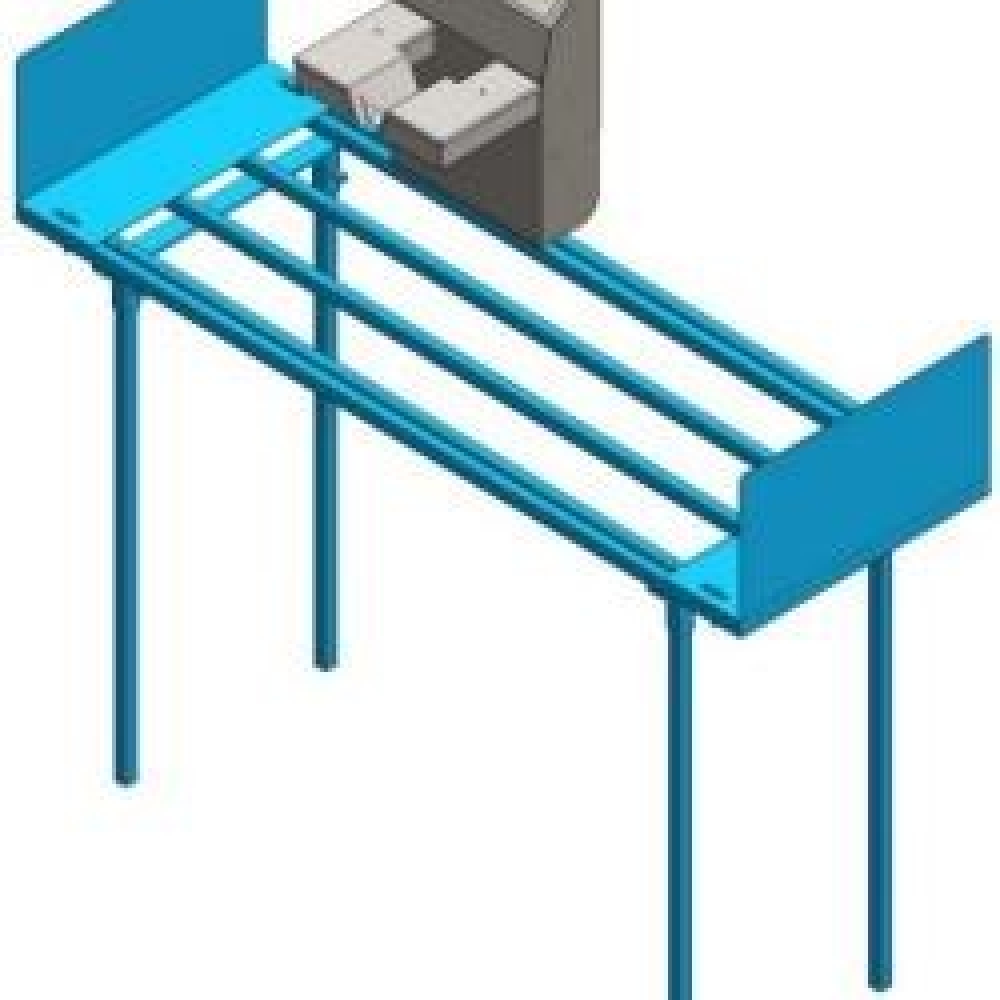

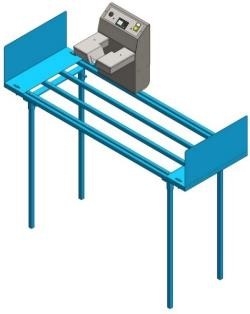

HECO-BANCO-V01

  • MAIN TECHNICAL FEATURES: OPEN AND ALWAYS CLEAN WORKING SURFACE, HEIGHT-ADJUSTABLE LEGS

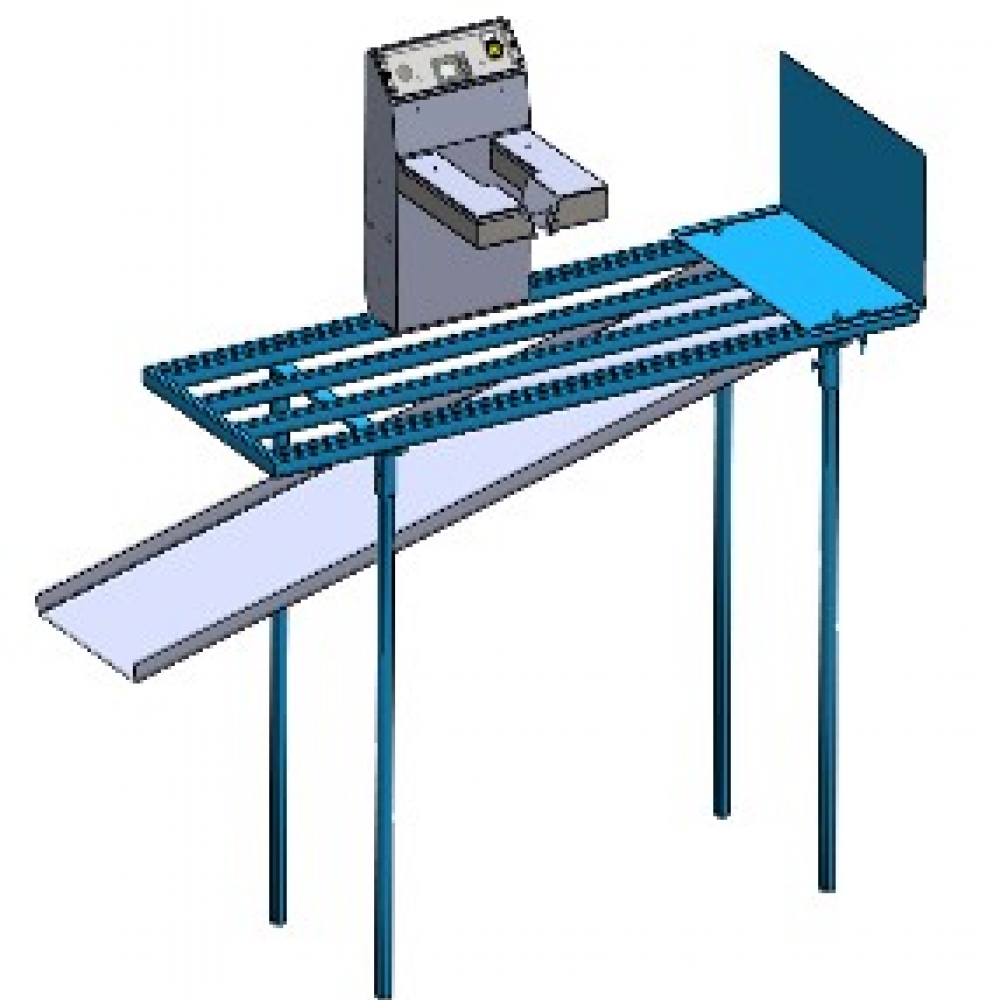

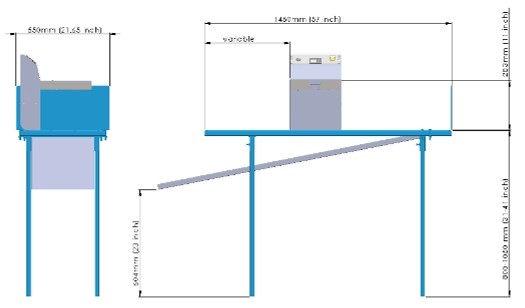

  • TOTAL DIMENSIONS AND WEIGHT: Standard L. 1.450 X W. 500 X H. 1.190 mm - Weight: 15 Kg. With Slide L. 1.450 X W. 550 X H. 1.050 ÷ 1.300 mm - Weight: 20 Kg.

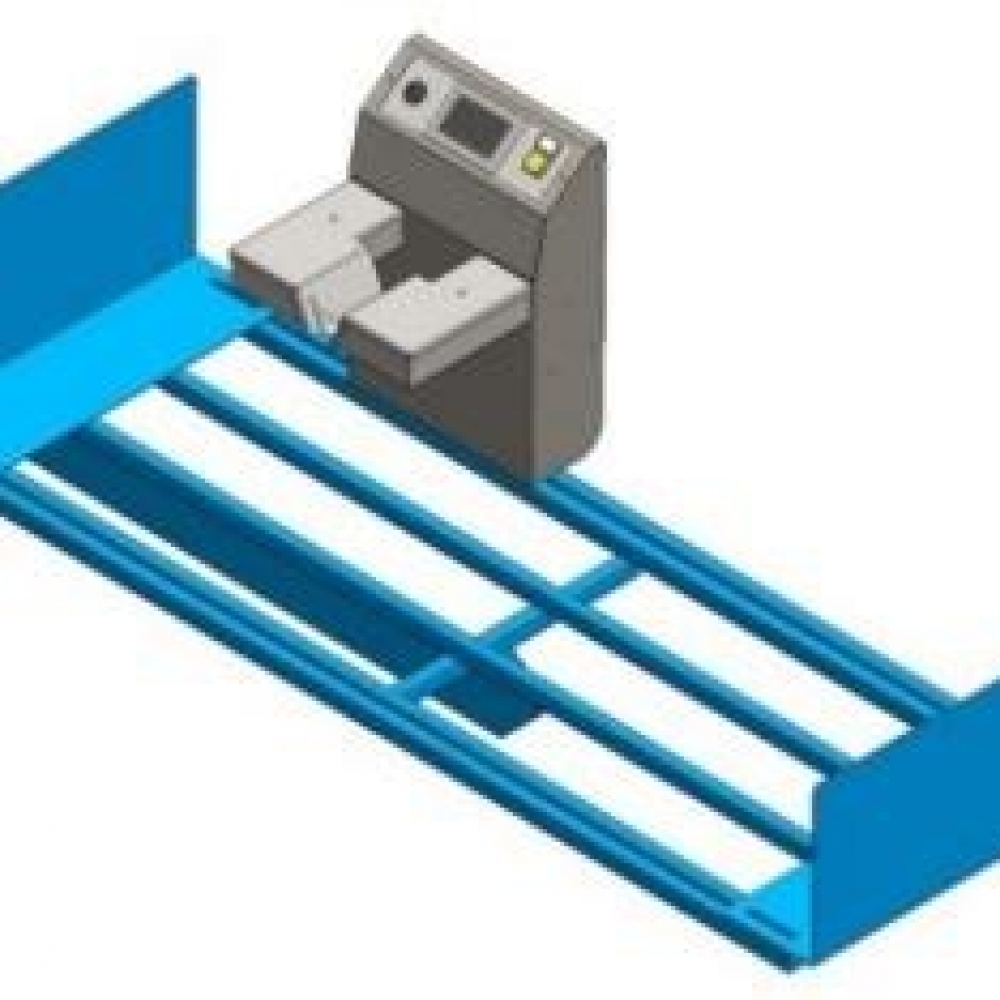

HECO-BANCO-V02

  • MAIN TECHNICAL FEATURES: IT IS HINGED AND CAN BE TILTED UPWARDS, SIDE CONTAINMENT PANELS ADJUSTABLE IN WIDTH

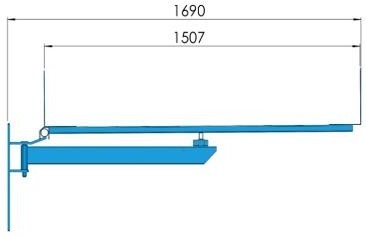

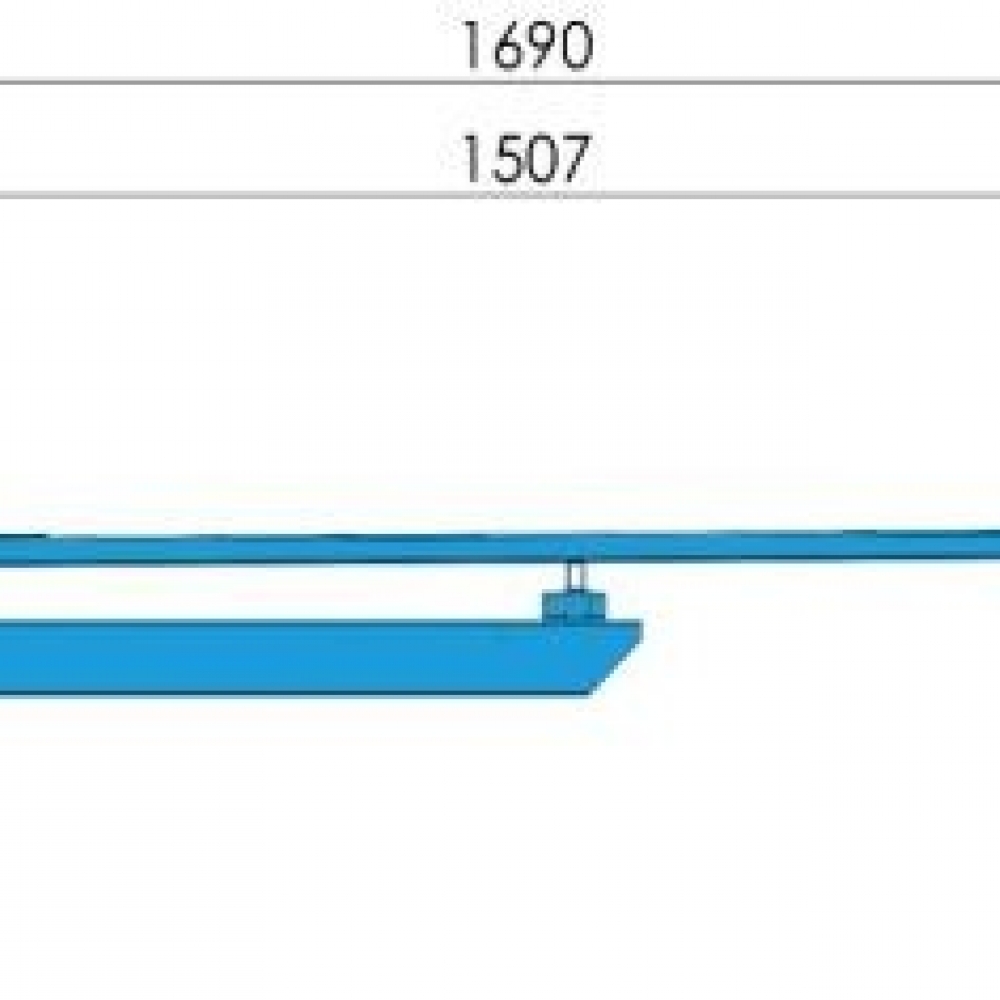

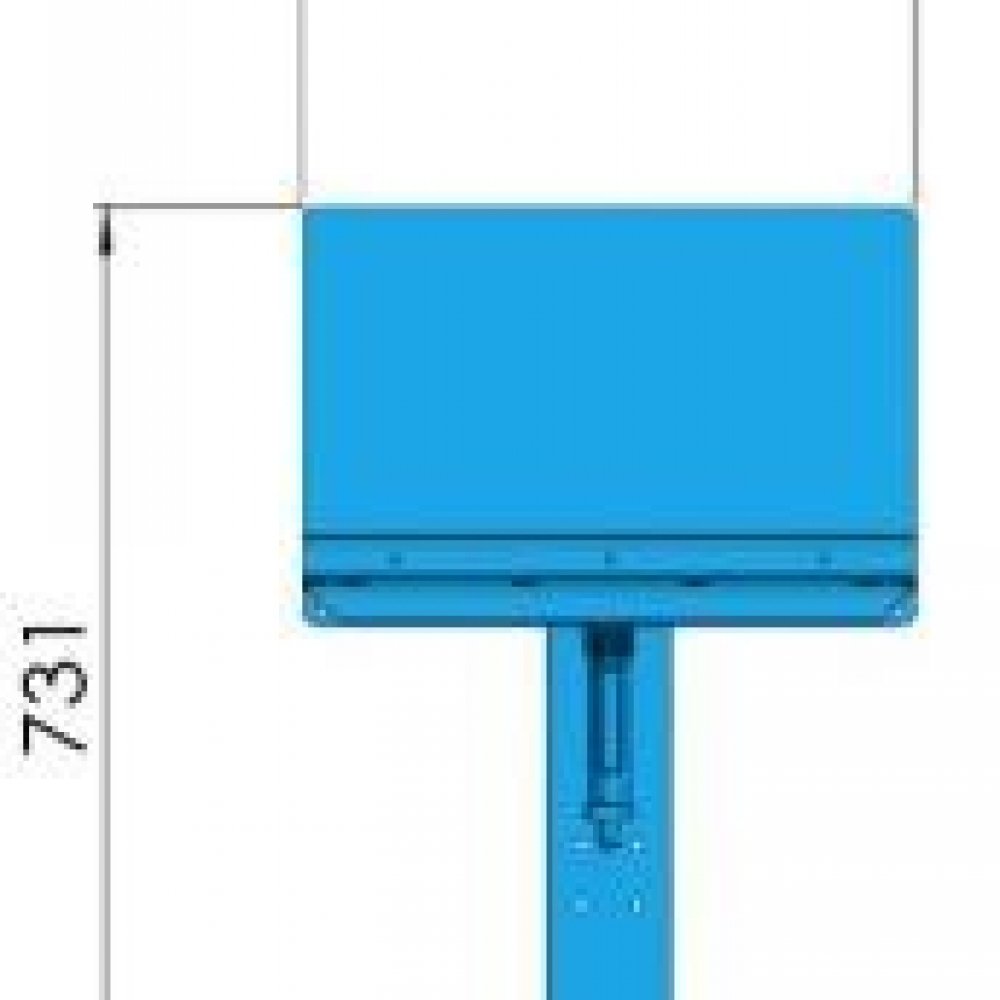

  • TOTAL DIMENSIONS AND WEIGHT: L. 1.690 X W. 500 X H. 731 mm - Weight: 30 Kg.
